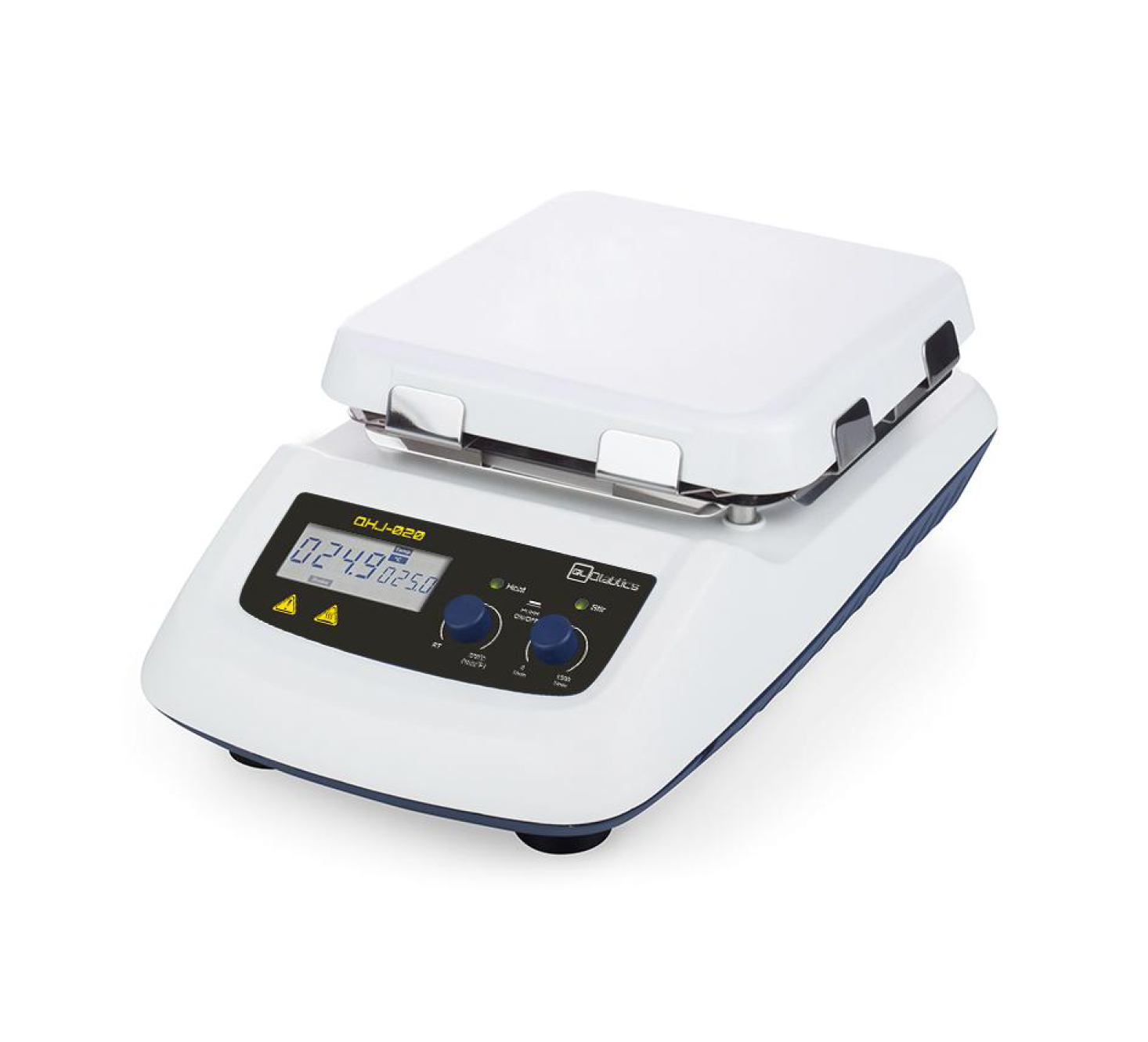

HeatJet 7″ Square Magnetic Stirrer with Hotplate
The HeatJet features a glass ceramic heating plate measuring 184 × 184 mm, offering excellent chemical resistance and uniform heat distribution. It supports magnetic stirring with a speed range of 100 to 1500 rpm (±1 rpm resolution) and a maximum plate temperature of 550 °C, making it ideal for demanding laboratory applications.
Key Features:
-
Heating Capacity: Up to 1050 W, with PID temperature control for fast, precise, and stable temperature regulation.
-
Volume Capacity: Handles up to 20 liters.
-
Temperature Sensor: Includes external Pt1000 sensor for real-time control (accuracy ±0.2 °C).
-
Safety Functions:
-
Over-temperature protection: Automatic shutdown if temperature exceeds 580 °C.
-
HOT Warning: Alerts users of residual heat even after the unit is turned off.
-
-
Display: Bright LCD screen displays set/actual temperature (±0.1 °C) and stirring speed.
-
Motor: DC brushless motor, ensuring quiet, maintenance-free operation.
-
Magnetic Bar Compatibility: Accepts stir bars from 30 mm to 80 mm (one included).
-
Support Clamp: Compatible with STIH-A04-001 clamp (sold separately).
-
Dimensions: 360 × 215 × 112 mm
-
Power Supply: 200–240 V / 50–60 Hz
-
Protection Rating: IP21 (DIN EN 60529)
HeatJet | QHJ-020 |
Work plate material – Motor Type | Glass ceramic heating plate |
Max. stirring quantity [H2O] | 20L |
Work plate dimension [WXH] | 184 × 184 mm |
Max. magnetic bar | 80mm |
Speed display and Temperature display | LCD |
Heating temperature range | Room temp: +5ºC-550ºC |
Speed range | 100-1500rpm |
Over heat protection | 580ºC |
Dimension [WXDXH] | 215X360X112 mm |
External temperature sensor | PT1000 (accuracy ±0.2ºCJ) |
Data connector | RS232 |
Protection class | IP21 |
Voltage- Weight | 100-120/200-240V, 50/60Hz-5.3Kg (11.7 lbs.) |
Permissible ambient temperature and humidity | 5-40℃, 80%RH |
Clamping system | 100$ |
*2 years warranty.
** free of charge, unique software of Qlabtics for managing device maintenance and troubleshooting.
