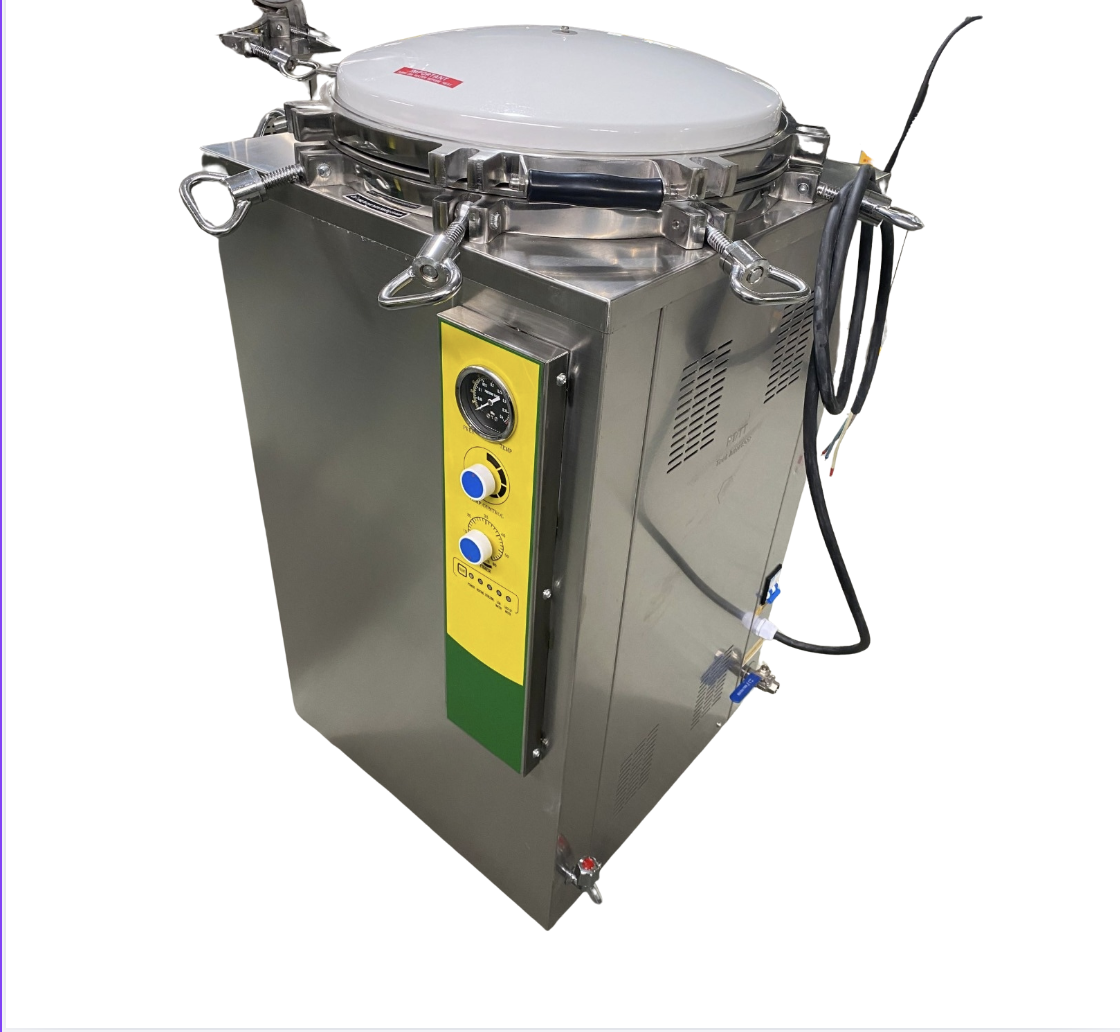

The VertiClave(Vertical AutoClave), developed by Qlabtics, boasts an impressive range of features to meet all your autoclaving needs.
Characteristics:
1.Fully stainless steel structure
2.Indicator light indicates working state
3.Over temperature&over pressure auto-protection
4.Double scale indication pressure gauge
5.Safe protection of water lacking
6.Automatically shut off with beep reminding after sterilization
7.Easy to operate,safe and reliable 8.With two stainless steel sterilizing baskets
| Model technical data |
LS-35LJ |
LS-50LJ |
LS-75LJ |
LS-100LJ |
| Chamber volume | 35L(φ318×450) mm | 50L( φ340×550) mm | 75L(φ400×600) mm | 100L(φ440×650) mm |
| working pressure |
0.22MPa |
|||
| Working temperature |
134℃ |
|||
| Max working pressure |
0.23 Mpa |
|||
| Heat average |
≤±1℃ |
|||
| Timer scope |
0～60min |
|||
| Temperature scope |
105～134℃ |
|||
| Power | 2.5KW/AC220V.50Hz | 3KW /AC220V.50Hz | 4.5KW /AC220V.50Hz | |
|
Overall dimension |
470×450×840(mm) |
520×500×970(mm) |
550×530×990(mm) |
580×560×1060(mm) |
| Transport dimension |
540×540×970(mm) |
580×580×1090(mm) |
610×610×1110(mm) |
640×640×1170(mm) |
| G.W/N.W | 61Kg/ 46Kg | 73Kg/56Kg | 87Kg/67Kg | 95Kg/73Kg |
** free of charge, unique software of Qlabtics for managing device maintenance and troubleshooting.
